Stone Crushing Plant

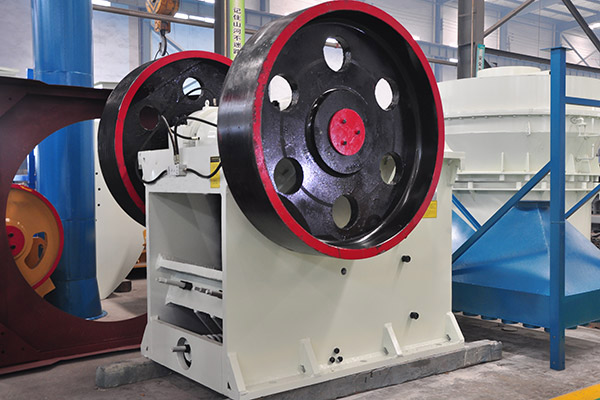

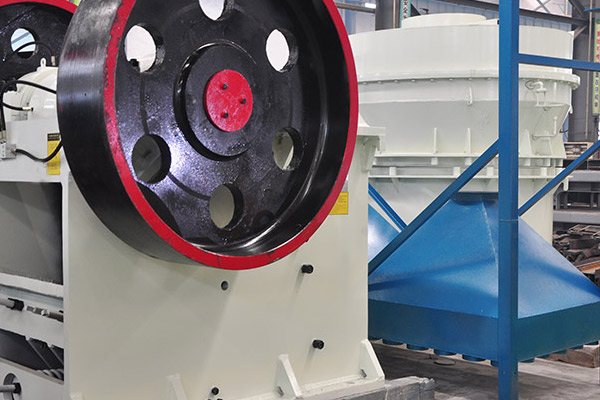

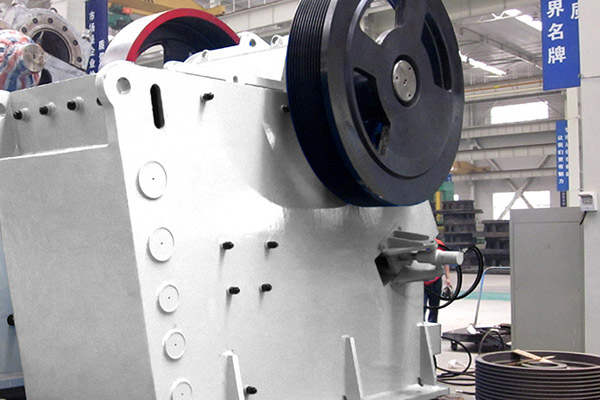

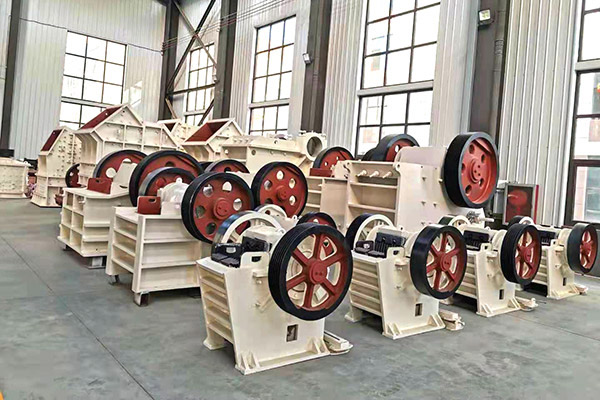

Jaw Crusher
  • Type :
    Stone Crushing Plant
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing.
3. The crushing chamber uses "V"-shaped structure, so that the feeding size equal to the nominal one.
4. The crushing chamber is deep and without dead zone, increases the capacity and the output.
5. Lubrication system is safe and reliable, convenient to replace parts, easy to maintain.
6. The outlet employs shim adjustment system, convenient and reliable, and increase the flexibility of the equipment.
7. Low noise, less dust.


Tags: Jaw Crusher Somali jaw crusher sale Somali jaw crusher price Somali static concrete pump in Bamakonew concrete pumps in Jubatruck mixer concrete pumps in Nouakchotttrailer pump concrete in Freetown

Gallery
Parameters
Model Size Of Feed Opening(Mm) Max Feed Size (Mm) Discharge Range Opening (Mm) Capacity (M3/H ) Motor Power(Kw) Weight(T)
PE-400×600 400×600 340 40-100 10-40 30 6.5
PE-500×750 500×750 425 50-100 28.5-62.5 55 10.8
PE-600×900 600×900 500 65-160 30-75 55- 75 15
PE-750×1060 750×1060 630 80-200 80-160 90-110 28.9
PE-870×1060 870×1060 750 170-270 145-235 90-110 29.5
PE-900×1200 900×1200 750 100-200 100-240 110-132 49
PE-1000×1200 1000×1200 850 200-280 190-275 110-132 51
PE-1200×1500 1200×1500 1020 150-300 250-500 200 88.5
PEX-150×750 150×750 120 10-40 5-16 15 2.5
PEX-250×1000 250×1000 210 25-60 10-30 30-37 6.6
PEX-250×1200 250×1200 210 25-60 10-31.5 37 7
PEX-300×1300 300×1300 250 20-90 12.5-53 75 12

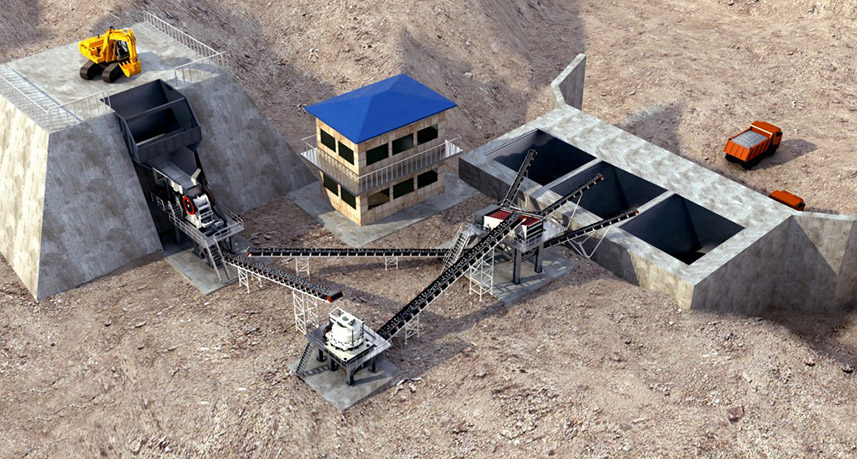

The new generation of stone crushing plant is made up of the vibrating feeder, the jaw crusher, cone crusher, round vibrating screen and high efficient sand washer. The advantages of the plant are reliable performance, reasonable design, simple operation and high working efficiency.
