Remote Controlled Skid Steer Loader
  • Type :
    Skid Steer Loaders
  • Brand :
    HAMAC
  • Origin :
    China
Features

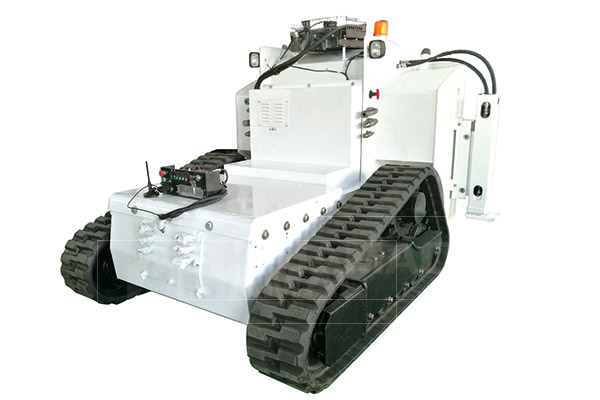

1. Adopts world-famous remote control system and electric components, the main machine and attachment can be controlled by the remote control distance within 800 meters range;
2. All of our skid steer loader can be designed to remote control;
3. We can optimized the skid steer loader according to customers' requirement. Our remote controlled skid steer loader is being widely used for fire fighting, underwater work and special work.

Tags: tracks for wheeled skid steer Addis Ababa caterpillar track skid steer for sale Addis Ababa skid steer on tracks for sale Addis Ababa schwing boom pump in Hararesany truck-mounted concrete pump in Harareconcrete pump mixer in Lomeportable jaw crusher Ethiopia

Gallery
Parameters

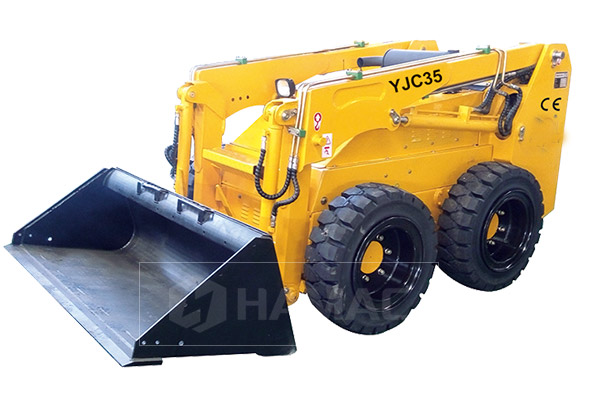

Model YJC35 YTS100
Operating Load (kg) 500 1200
Max. Speed (km/h) 10 12/18
Hydraulic flow (L/min) 60 88
Tire Model 8.5-15 320*84
Rated Power (kW) 29.5 74
Fuel tank Volume (L) 60 90
Self Weight (kg) 2300 4500
Bucket Volume (m³) 0.3 0.55

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/ Model YJC35 YTS100
Overall operating height (mm) 2825 4070
Height to bucket hinge pin (mm) 2200 3150
height to top of cab (mm) 1355 2160
Height to bottom of level bucket(mm) 2033 2983
Overall length without bucket(mm) 2300 3000
overall length with bucket(mm) 2950 3700
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 1525 2450
Dumping reach(mm) 790 700
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 897 1500
Ground clearance(mm) 140 200
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1098 1365
Front tuning radius(mm) 1760 2200
Rear tuning radius(mm) 1296 1742
Rear axle to bumper (mm) 964 938
Tread width, centerline to centerline (mm) 1080 1654
Width (mm) 1350 1994
Bucket width (mm) 1400 2030
Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Mixer
Mixer
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe

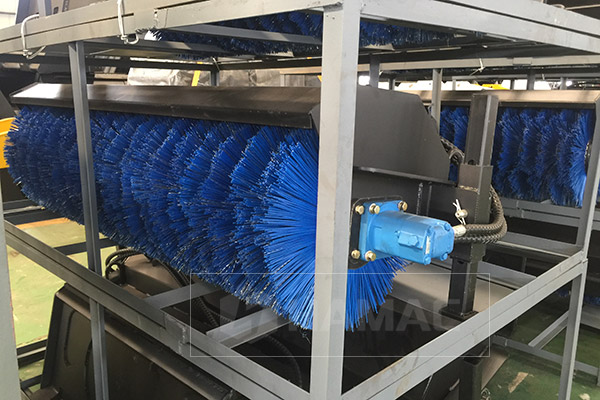

Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade
Get all the Skid Steer Loader Attachments
