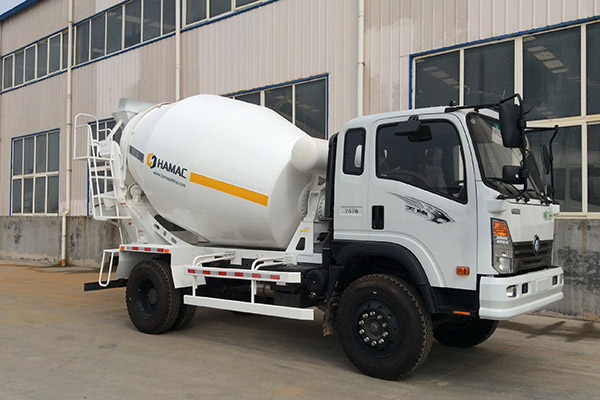

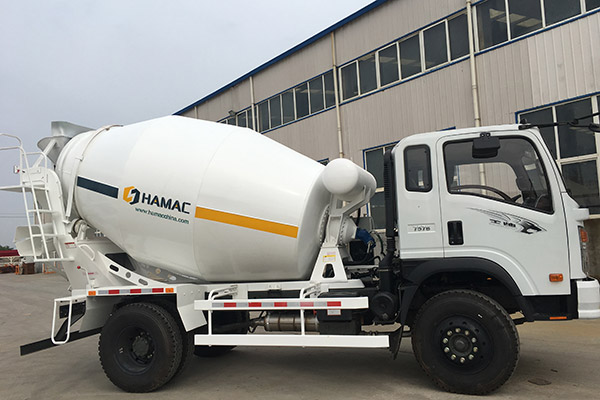

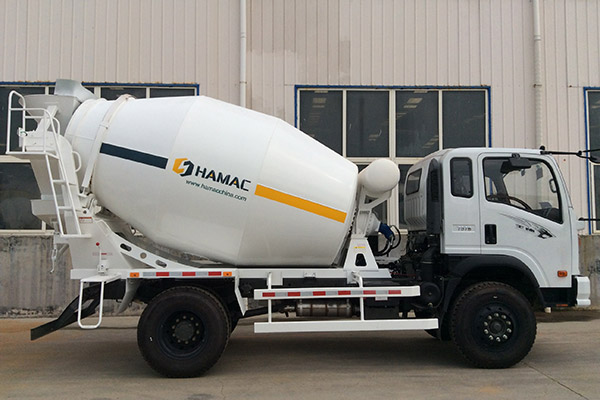

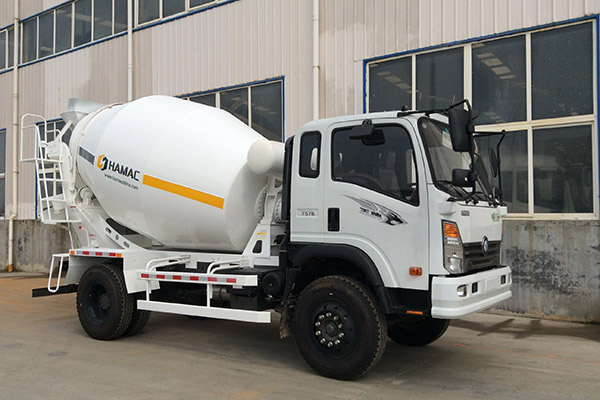

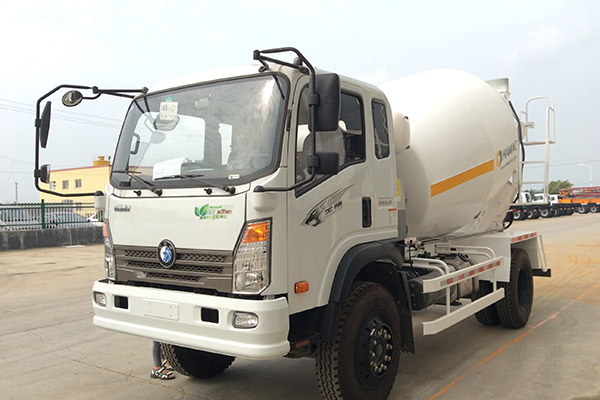

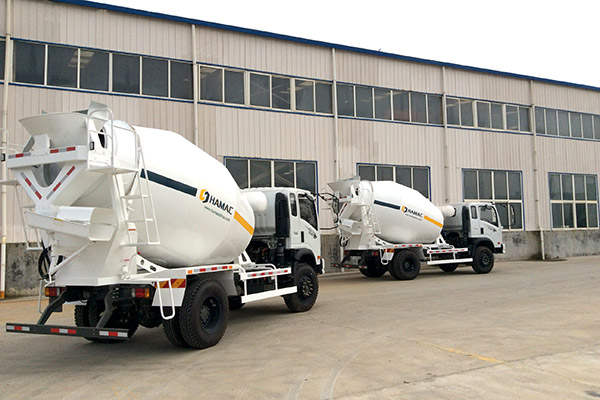

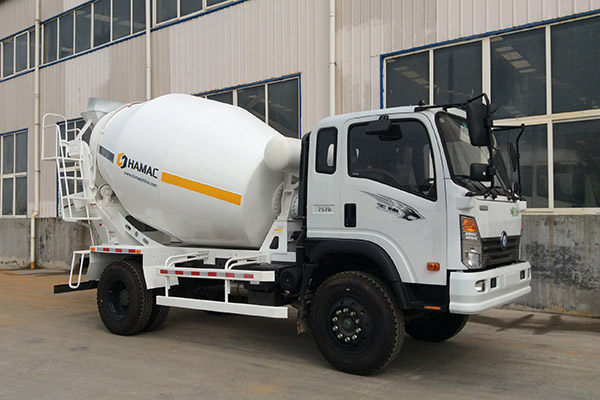

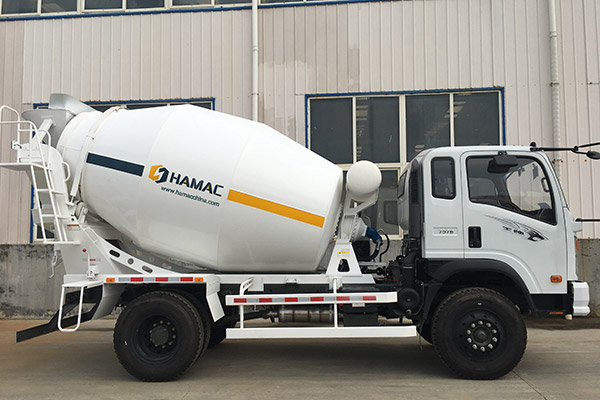

8 M3 TRANSIT MIXER TRUCK |
|
| Overall parameter | |
| Overall dimension | 8635x2485x3730mm |
| Kerb weight | 10960kg |
| Mixing Drum parameter | |
| Mixing drum material | High quality wear-resistance steel |
| Model:Q345 | |
| Drum body thickness: 5mm, End cover thickness:6mm | |
| Agitating capacity | 8M3 |
| Drum overall dimension(with frame) | 6600*2500*2675mm |
| Mixing drum size | Diameter: Φ2300mm Length: 4730mm |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
| Water supply | Baric water supply system |
| Water tank capacity | 450L |
| Radiator | 18L |
| Reduction gear | HL Reducer, Italy brand |
| Hydraulic pump | Interpump, Italy Brand |
| Hydraulic motor | Interpump, Italy Brand |
| Accessory | Tool box |
| Chassis parameter | |
| Chassis Brand | SINO Truck HOWO |
| Chassis model | ZZ1257N3247W |
| Axle base | 3225+1350mm |
| Driving type | Right hand drive |
| Engine model | WD615.69 |
| Rated power (HP) | 336HP |
| Emission standard | Euro II |
| Fuel type | Diesel |
