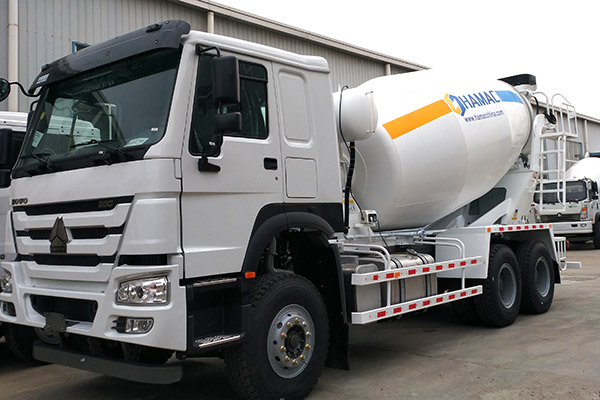

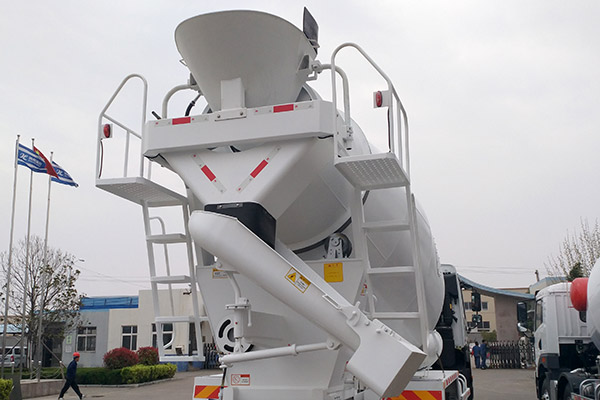

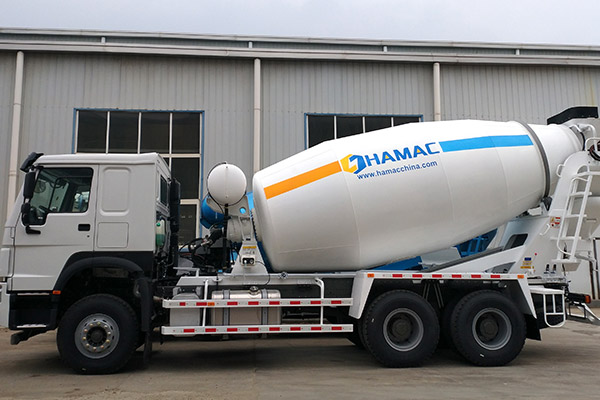

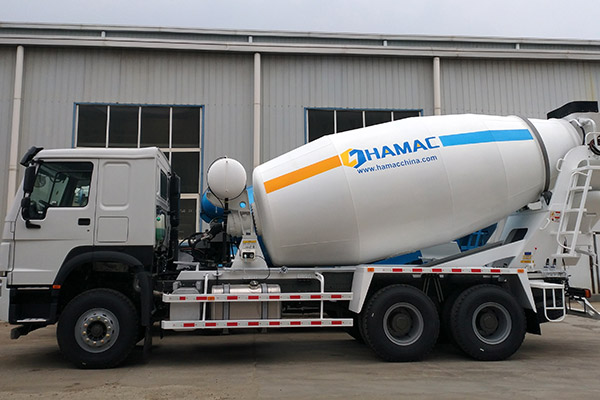

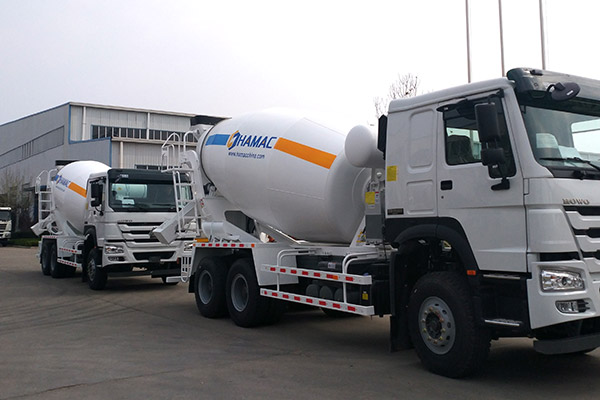

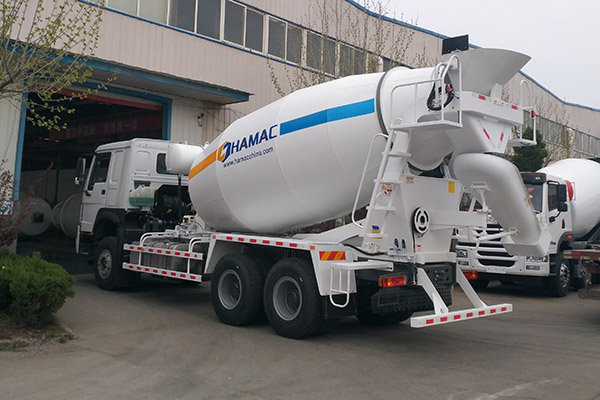

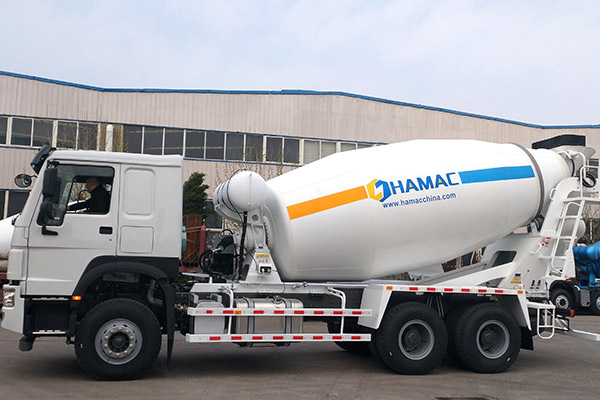

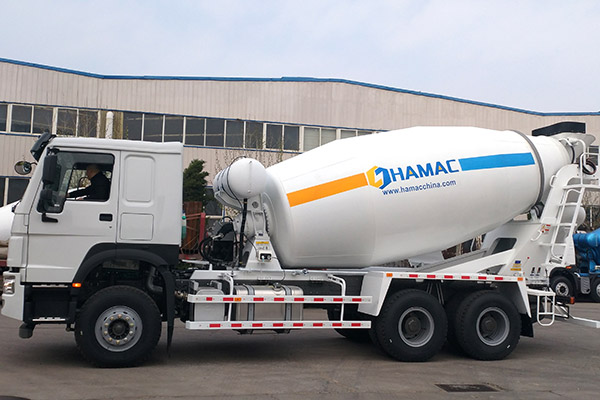

10cbm Concrete Truck Mixer
  • Type :
    Concrete Truck Mixer
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;



1. The whole truck is convenient and stable with strong intensity. Special purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination Center of gravity is lower than similar concrete transit mixer at 5%, safety facto higher 10%


Tags: Self-loading Concrete Mixing Truck Jimma 4m3 Concrete Mixing Truck Jimma 6m3 Concrete Mixing Truck Jimma truck mixer concrete pumps in Abidjan Yamoussoukrotranscrete pump in Bamakomounted concrete pump in Cairoskid steer cost Harar

Gallery
Parameters
Overall parameter( Concrete Transit Mixing Truck 10m³)
Overall dimension 9400x2500x3850mm(Approx)
Kerb weight 14500kg(Approx)
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 10m3
Drum overall dimension(with frame) 7100*2500*2730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear TOP T68 Reducer, Italy Brand
Hydraulic pump EATON 54, American Brand
Hydraulic motor EATON 54, American Brand
Accessory Tool box
Chassis parameter
Chassis Brand SINOTRUCK chassis
Wheelbase (mm) 3825+1350
Drive model Left hand drive
Quantity of axis 3
Engine SINOTRUCK  D10.34-40
Engine Power 340hp
Emission Standard EUR IV
Tire 12.00R20
Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
