Concrete Pumps
XBS/DXBS Fine Stone Concrete Pump
  • Type :
    Concrete Pumps
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
XBS/DXBS series products are also widely used for the conveying of fine stone concrete, fire-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.

The inner diameter of conveying pipe has developed into φ100 based n formerφ80 so that XBS/DXBS series products can convey concrete with diameter no more than 30mm, which makes XBS DXBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.

Tags: concrete pump truck Dire Dawa concrete stationary pump Addis Ababa concrete pump sales Dire Dawa static concrete pump in Ouagadougouconcrete pump indonesia Jimmaconcrete pumping services in Victoriaportable gas cement mixer for sale Gondar

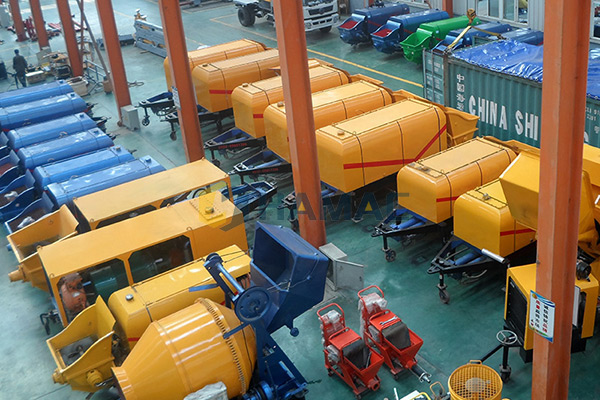

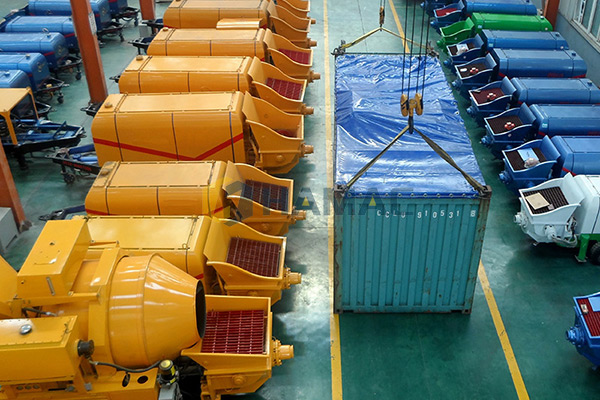

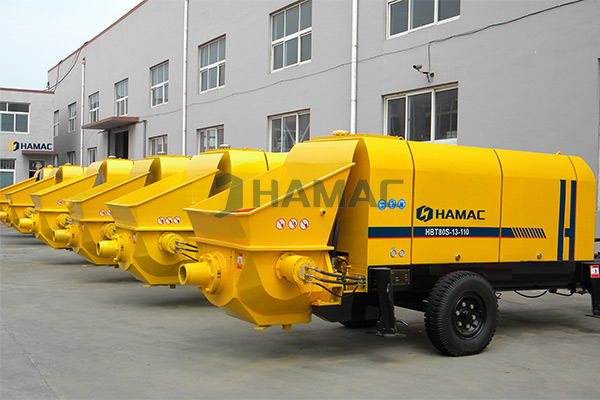

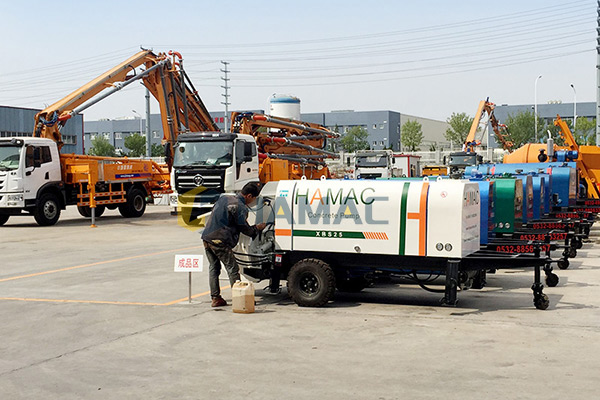

Gallery
Parameters
Item Unit Motor engine concrete pump Diesel engine concrete pump
XBS25-12-33 XBS30-13-40 XBS40-13-48 DXBS25-12-56 DXBS30-13-56 DXBS40-13-56
Max. theoretic delivery volume M3/h 25 30 40 25 30 40
Max. outlet pressure Mpa 12 13 13 12 13 13
Main oil pump volume Ml/r - - - 63 80 112
Max. aggregate diameter mm ≤30(≤20)
Cylinder diameter*stroke mm φ140×800 φ140×1000 φ140×1000 φ140×1200 φ140×1200 φ140×1200
Power Kw 30 40 48 56 56 56
Inner diameter of delivery pipeline mm   φ100（φ80） φ100（φ80） φ100（φ80） φ100（φ80 φ100（φ80）
Overall mm 4600×1500
×1550		 4600×1500
×1550		 4600×1500
×1550		 4600×1500
×1550		 4600×1500
×1550		 4600×1500
×1550
Weight kg 2000 2100 2100 2300 2450 2450
Max. theoretic delivery distance Horizontal m 400 500 600 350 450 550
vertical m 140 160 180 140 160 180
