Electric Concrete Pump(HBT Series)
  • Type :
    Concrete Pumps
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

Tags: Electromotor concrete pumps Jimma concrete pump manufacturers Jimma concrete pump truck Dire Dawa small concrete pumps sale in El Aaiunmini concrete pump truck in Bujumburasmall concrete trucks for sale Ethiopiamobile concrete mixer with pump in Kampala

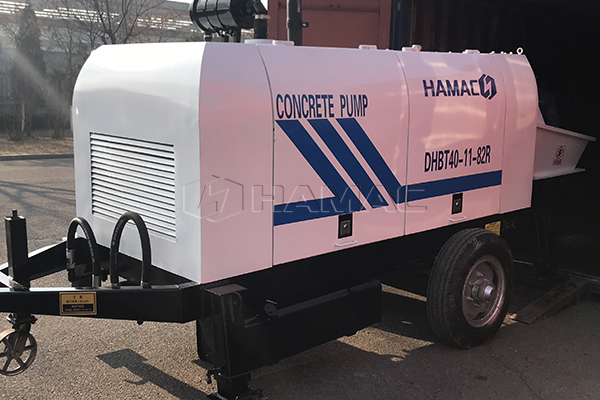

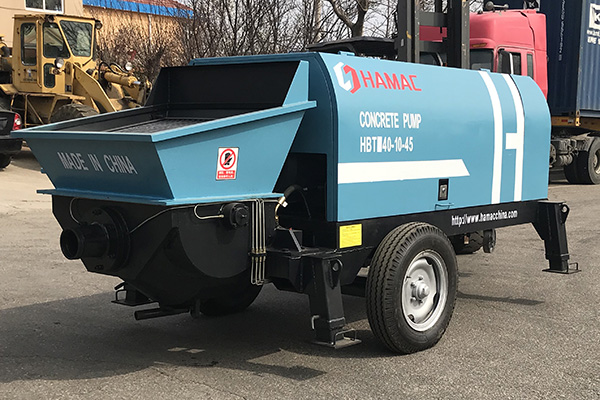

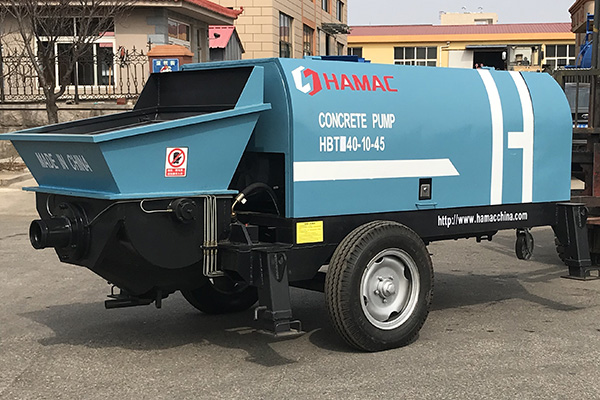

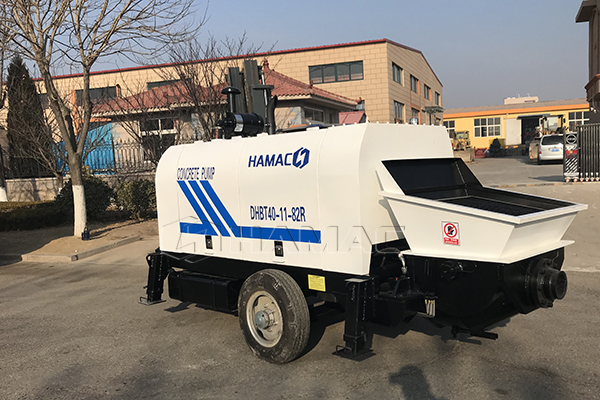

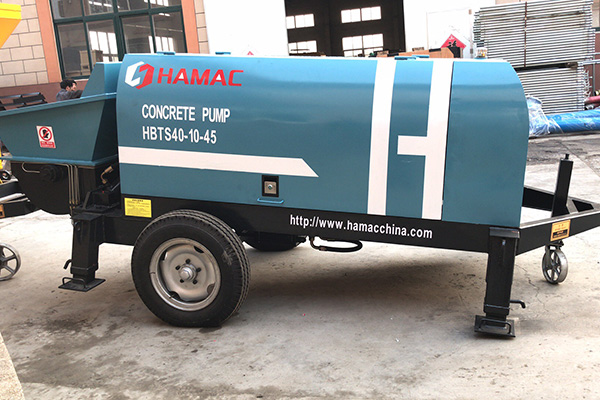

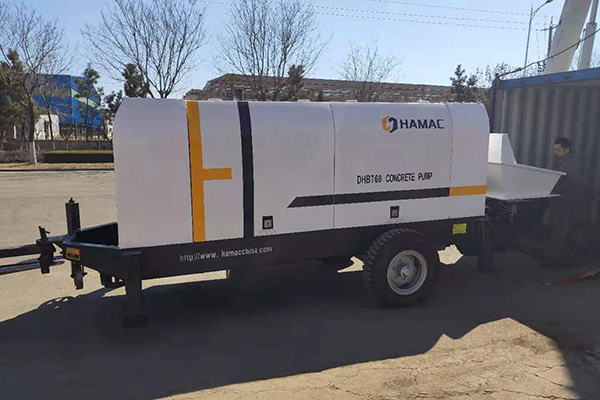

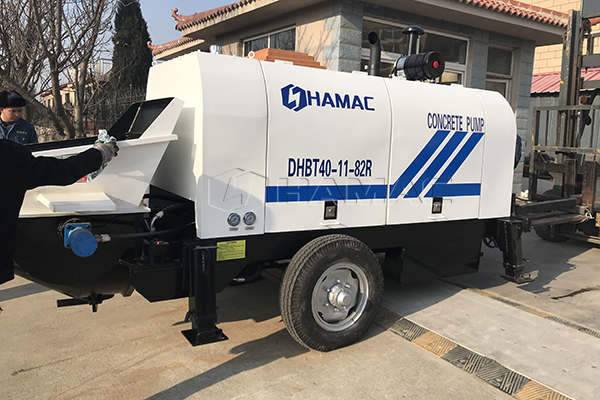

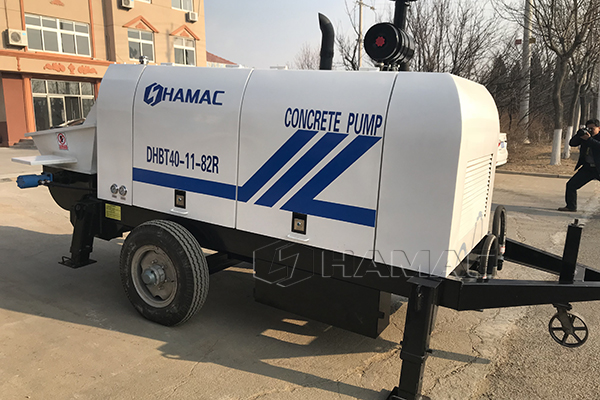

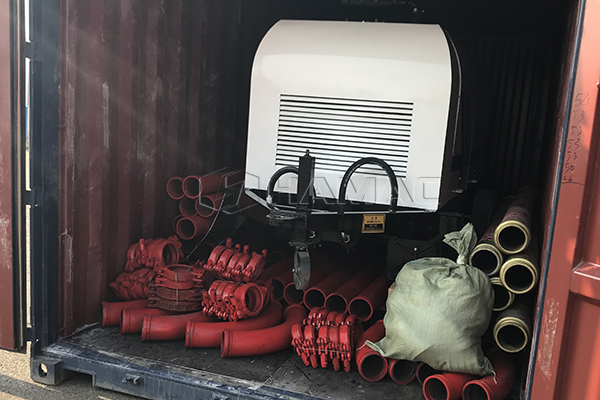

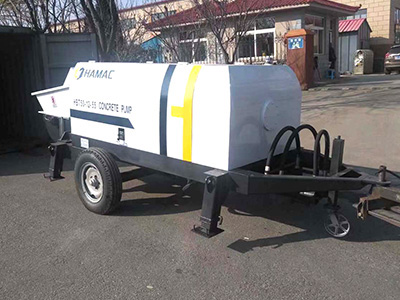

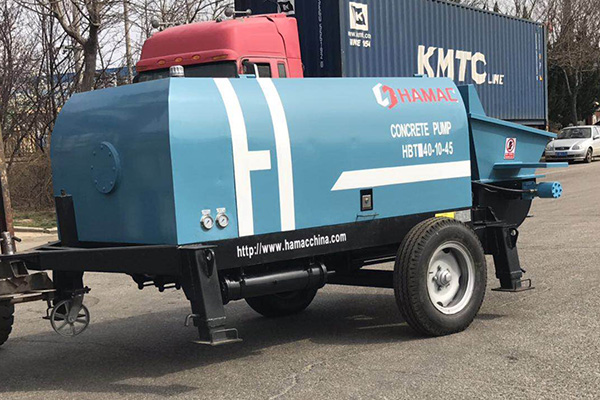

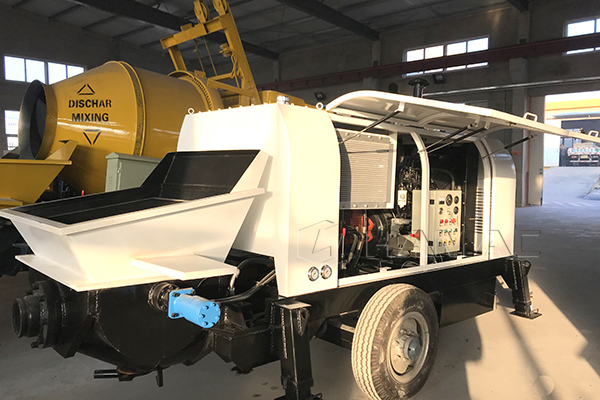

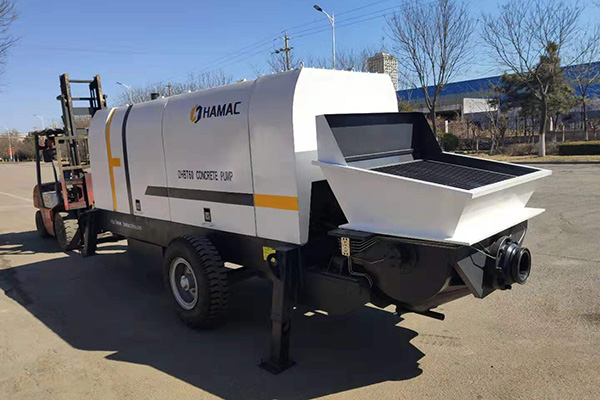

Gallery
Parameters
Item Unit S Valve Concrete Pump
HBT30 HBT40 HBT50 HBT60 HBT80
Theoretic Concrete Delivery Volume Low Pressure M3/H 30 40 50 60 80
High Pressure M3/H / / 23 36 48
Concrete Delivery Pressure Low Pressure MPa / / 5.8 6.3 8.3
High Pressure MPa 10 10 12 13 16
Hydraulic Pressure MPa 25 28 28 28 28
Electric Motor Speed R/Min 1480
Main hydraulic Pump JINDA Kawasaki
Main Cylinder Dia./Pole Dia.×
Stroke
mm Φ80/55×845 Φ100/70×1100 Φ110/70×1300 Φ120/80×1650 Φ140/90×1800
Diameter Of Delivery Cylinder mm 140 160/180 180 200 200
Electric Motor Power KW 37 45 55 90 110
Capacity Of Hydraulic Oil Tank L 200 370 370 560 560
Hopper Capacity M3 0.4 0.55 0.6
Overall Weight Kg 2300 3500 3600 5000 5600
Max.
Delivery Distance
Vertical M 100 160 160 160 160
Horizontal M 300 500 500 800 1000
