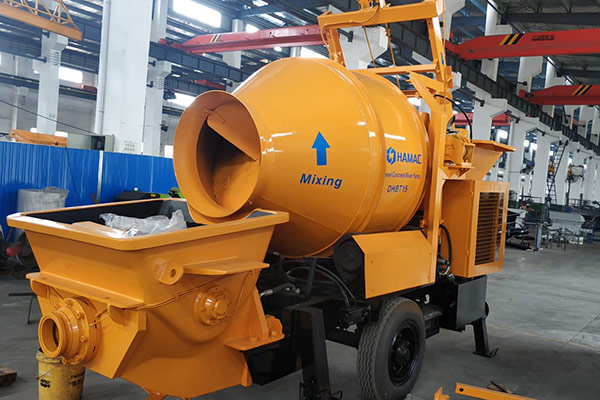

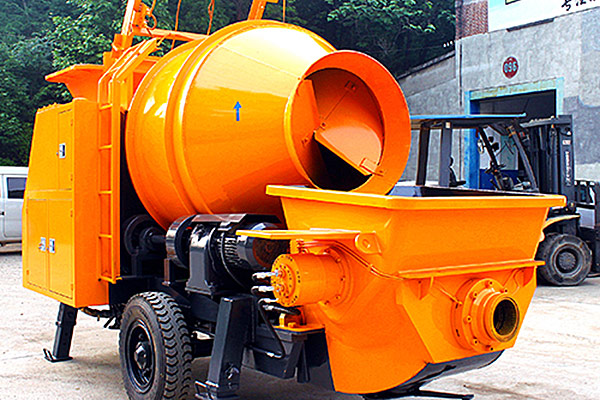

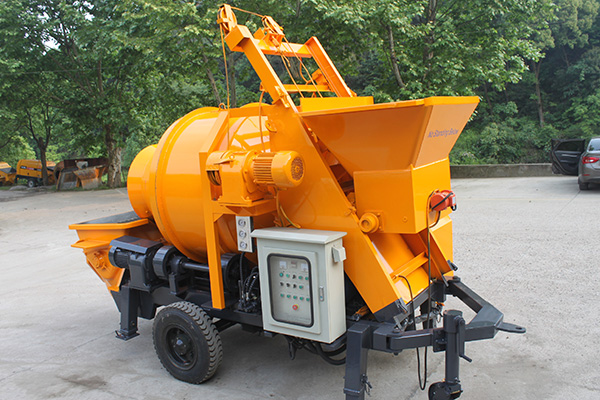

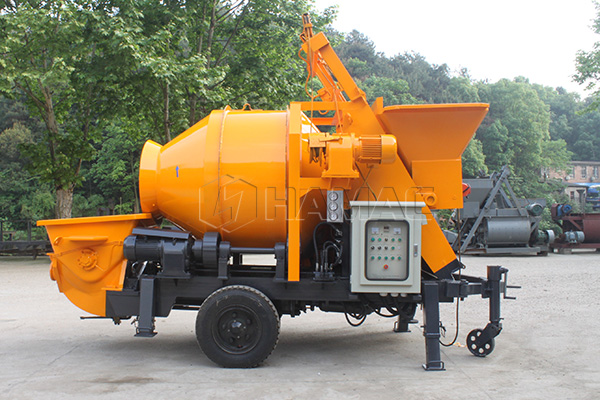

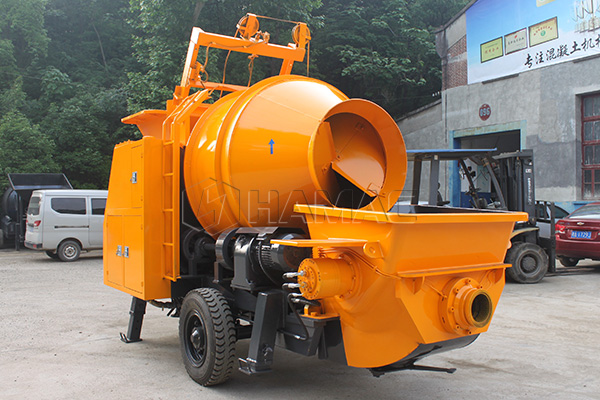

Concrete Mixer with Pump
  • Type :
    Concrete Mixer
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. One worker to operate the mixing and pumping, save your labor cost;
4. PLC controlled, work stable, working life longer;
5. Loading, mixing, discharging and pumping, full hydraulic, full automatic;
6. Manual lubrication, separate water-cooled diesel engine;
7. Two usages of dragging support, could be used as charging platform;
8. Versatile, concrete mixer and concrete pump could work separately.

Tags: Truck Mixer Concrete Pumps Addis Ababa JBT Concrete Mixer Addis Ababa Mixer Pumps Addis Ababa concrete boom pump truck for sale in Nairobiconcrete pump station in Nouakchotttruck mixers for sale Gondartrailer mounted concrete pump for sale in Lilongwe

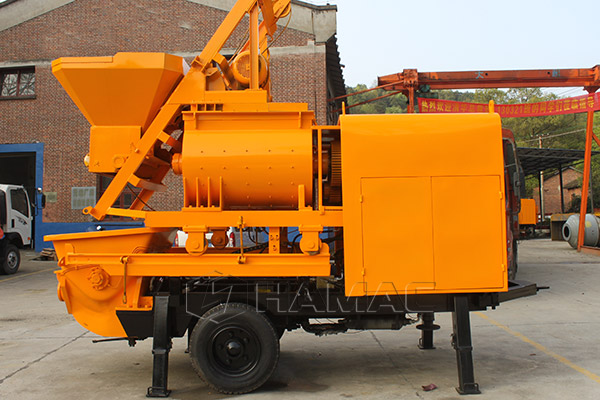

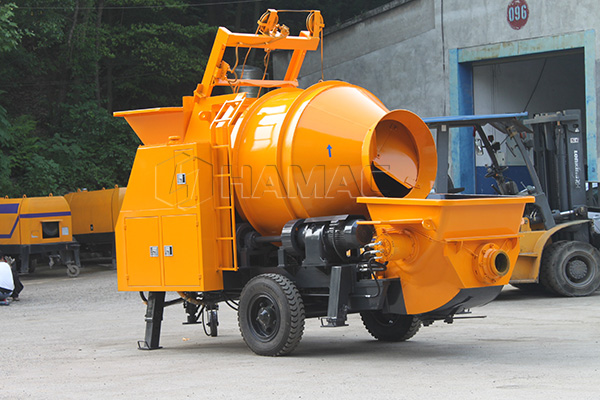

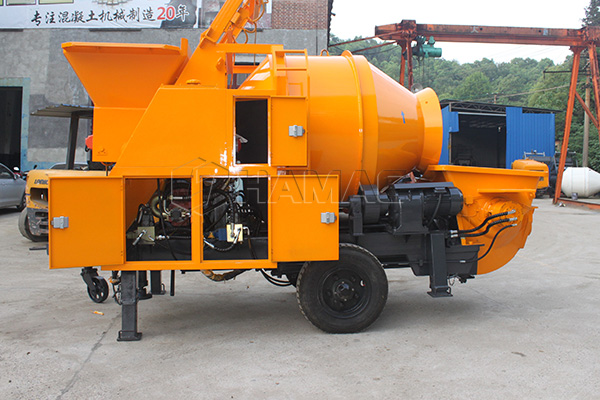

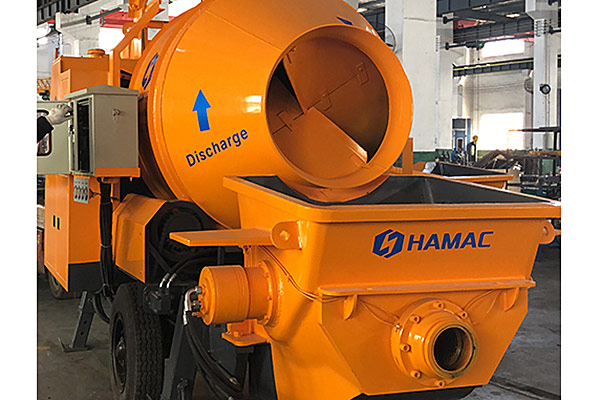

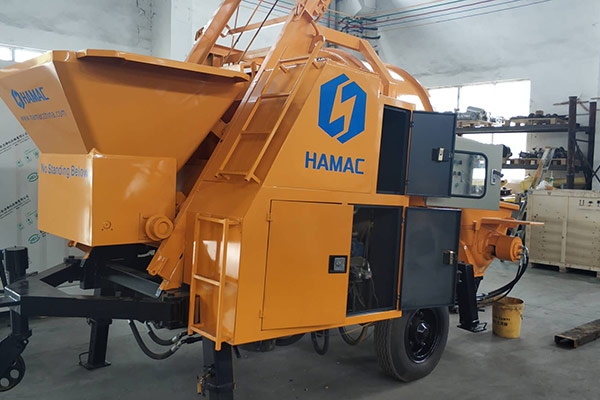

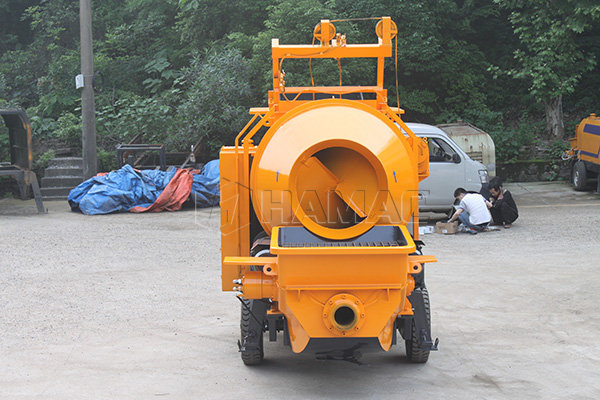

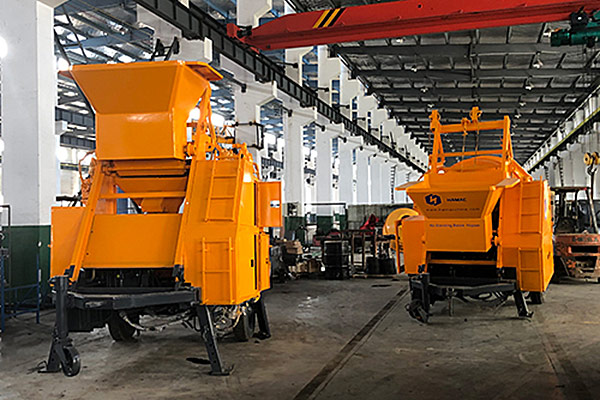

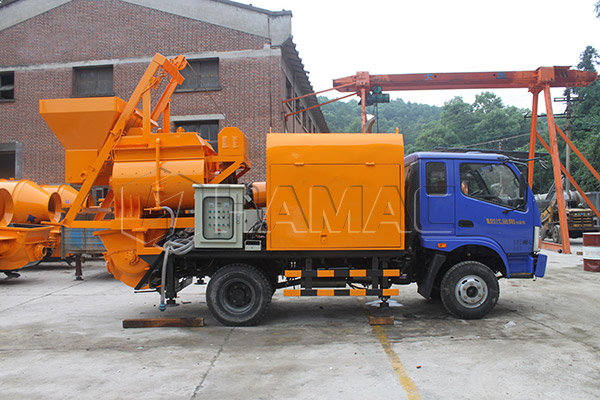

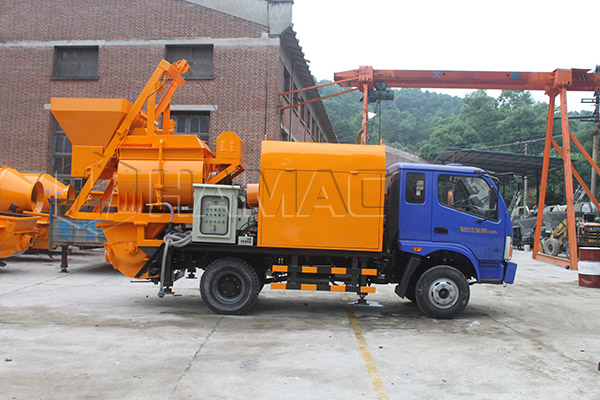

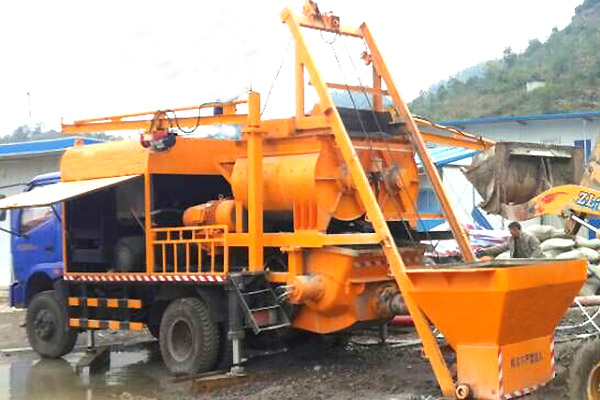

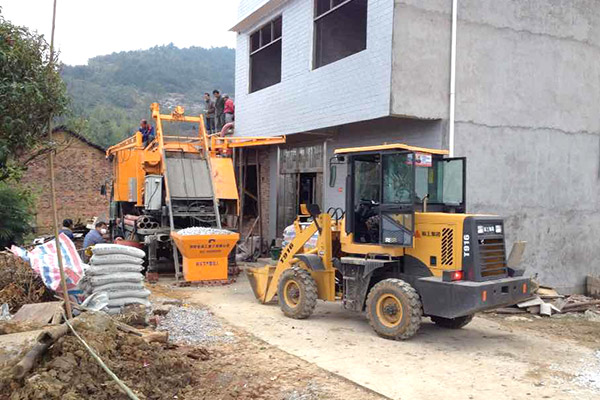

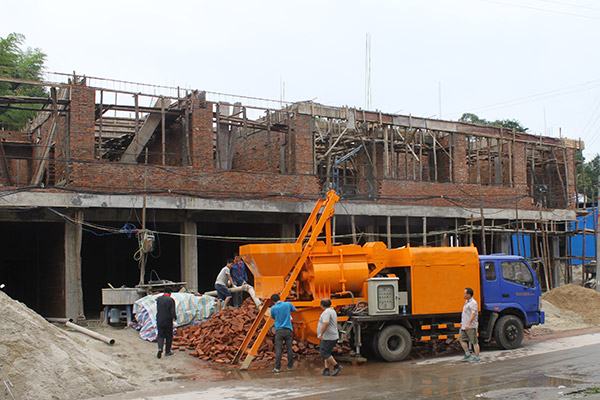

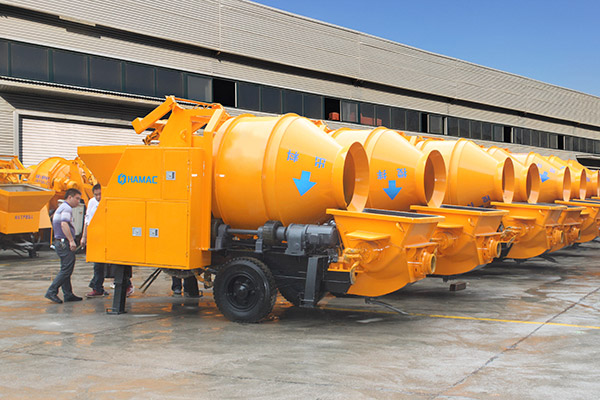

Gallery
Parameters



Parts Name/Parameters Parts Specification
Models JBT40 DJBT40 HBT15-L1
Power Power supply model Local electricity 3P Diesel engine  Local electricity 3P
Electric Component  Siemens/Schneider/Omron
Mixing System Mixer JZM450 drum mixer, 750L charging hopper,
450L concrete output per batch
JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
Mixing Motor 5.5kW*2 Hydraulic  18.5kW
Hoist Motor 5.5kW Hydraulic  5.5kW
Submersible Pump 0.75kW Hydraulic  0.75kW
Max. Theoretical Mixing Output 18-22m³/h 25m³/h
Pumping System Main Motor 37KW 72kW, Weichai
diesel engine
37KW
Motor Rated Speed 1480 RPM 1800 RPM 1480 RPM
Mian Hydraulic Oil Pump KAWASAKI K3V112
Double Gear Pump 25&16
 Valves overflow and directional valves, OM, Italy brand
Main Oil Cylinder Φ100*Φ70*1000mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
Outlet Pressure 8Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage Customized  Diesel engine Customized
Max. Aggregate Size Pebble:40mm  Aggregate:30mm
Delivery height and horizontal distance 70m/300m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter  Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm
Total Weight 5300kgs 5600kgs 7000kgs
Tyre Size 700R16
Towing Speed Max. 8km/h

Note: Our products are being updated constantly, all rights reserved by HAMAC.
