| Model | JZR350DW | JZR350DH | JZR500DH |
| Discharging Capacity(L) | 350 | 350 | 500 |
| Charging Capacity(L) | 560 | 560 | 800 |
| Productivity(m3/h) | 10-14 | 10-14 | 20-22 |
|
Maximum Size of Aggregate(mm) |
60 | 60 | 80 |
| Hopper Lifting | Hydraulic system | Hydraulic system | Hydraulic system |
| Diesel Engine Power(kw) | 13.2 | 13.2 | 16.2 |
| Power of Water Pump(kw) | 0.75 | 0.75 | 2.2-3 |
| Accuracy of Water Supply | Error≤2﹪ | Error≤2﹪ | Error≤2﹪ |
|
Dimensions in Container (mm) |
2750×2200×2400 | 2300×1900×2500 | 2300×3300×2500 |
| Overall Weight (kg) | 1350 | 1400 | 2300 |

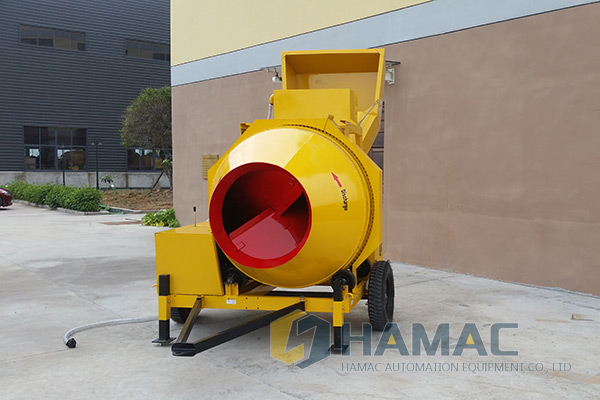

Diesel Concrete Mixer with Lifting Bucket:
| Model | JZC350-DHL |
| Discharging Capacity | 350L |
| Loading Capacity | 560L |
| Lifting Bucket Capacity | 200L |
| Productivity | 10-14m3/h |
| Bags of Cement per batch | 2 Bag Cement |
| Drum Thickness | 6mm |
| Drum Size | Φ1460×1760mm |
| Rated Lifting Height | 17m |
|
Engine Option |
Water-cooled JIANGDONG Diesel Engine ZS1100(16HP) |
|
Water-cooled CHANGFA Diesel Engine CF1100(16HP) |
|
|
Water-cooled CHANGCHAI Diesel Engine ZS1100(16HP) |
|
| Displace of Hydraulic Pump | 25ml/r |
| Max. Size of Aggregate | 60mm |
| Drum Rotation Speed | 14rpm |
| Total Weight | 2300kg |
| Overall Size(L*W*H) | 3300×2300×3100mm |
| Packing Size(L*W*H) | 2300×2000×2500mm |
| Container Loading Plan | 2 Sets/20GP, 5 Sets/40HQ |
