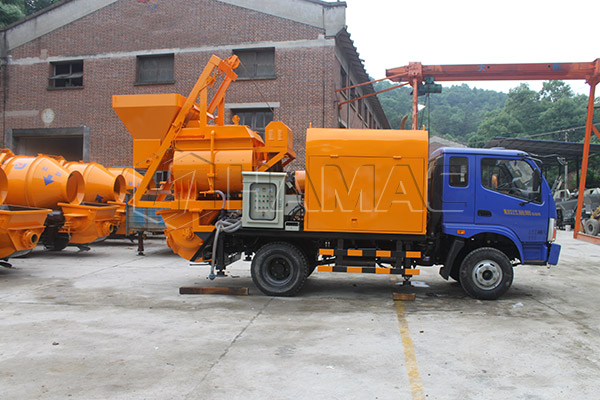

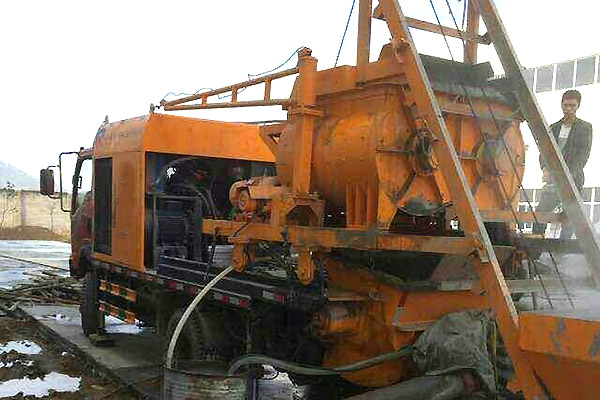

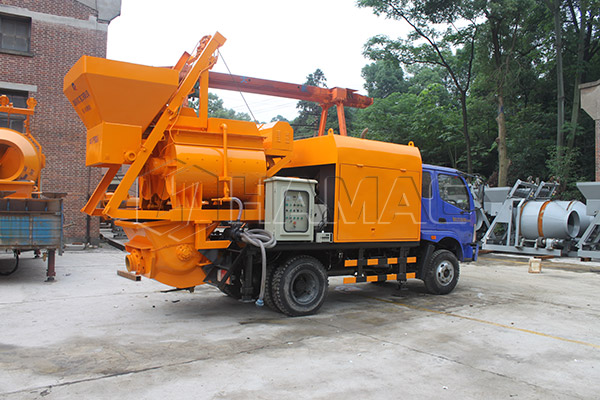

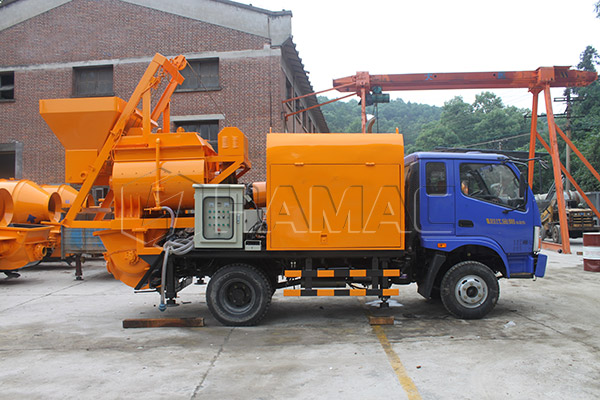

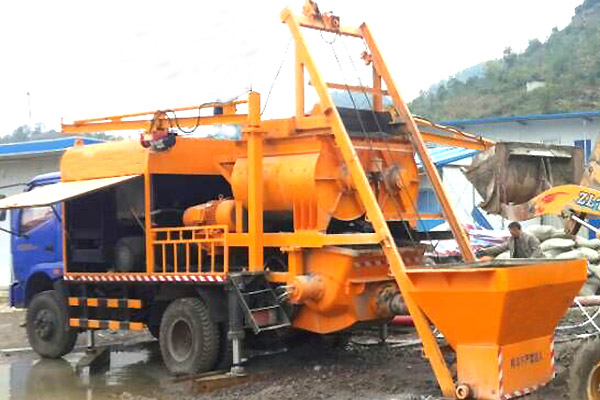

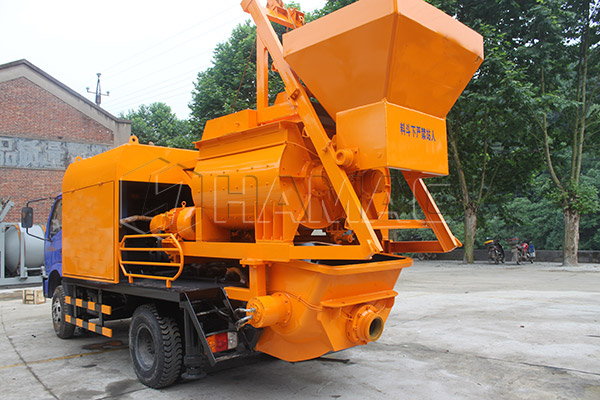

MHBT25-L1 Concrete Mixer Pump
  • Type :
    Concrete Mixer With Pump
  • Brand :
    HAMAC
  • Origin :
    China
Features
1. Equipped with diesel generator, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Equipped with aggregate batching machine, 20 recipes of concrete can be produced;
4. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
5.PLC controlled, work stable, working life longer;
6. Equipped with SINOTRUCKCDW chassis, it can be moved conveniently in different working areas.

Tags: portable concrete mixer and pump Jimma ajax concrete machine price Jimma Planetary Precast Concrete Mixer Jimma concrete pump for sale in uae in Maserucost of concrete pump truck in Moronismall size concrete pump in Ouagadougou42m concrete pump in Tripoli

Gallery
Parameters
Model MHBT25-L1 Concrete Mixer Pump
Product name Trailer batch pump
Pumping system
ITEM SPEC ITEM SPEC
Generator 100KW Main motor 37KW
Main pump KAWASAKI K3V112 Aggregate size Pebble: 40mm
Crushed stone: 30mm
Deliver cylinder
Diameter*stroke
Φ200*1000 Main oil cylinder
Rod*stroke
Φ100*φ70*1000mm
Distribution valve S valve Outlet diameter Φ200
Hydraulic oil tank 300L Delivery pipe Φ125
Slumps 12-23cm Max.theo. Pumping output 40m3/h
Mixing system

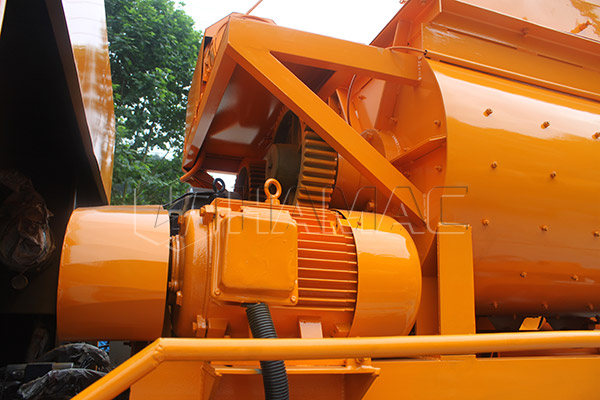

Mixer JS500 Mix motor 18.5KW

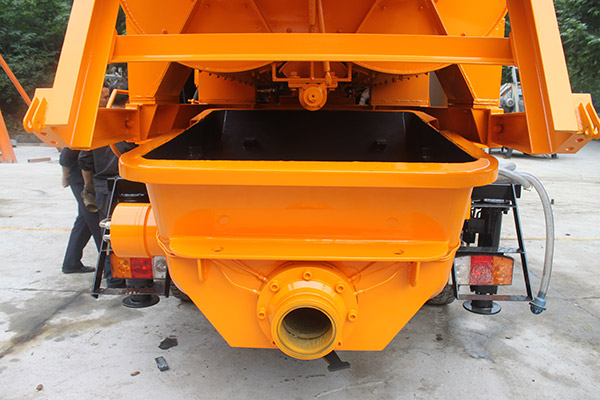

Feeing hopper x filling height 800L x 1200mm Hoist motor 5.5KW
Discharging
capacity
500L Water pump 0.75KW
Max. Theoretical mixing output 25m3/h Vibrator WAM 0.75kW*2
Chassis
Chassis brand CDW SINOTRUCK Wheel base 3650
Emission standard EURO V Max. speed 80kM/H
Overall Dimension
Operating size 8900*2210*3950mm Total weight 8000KG
Transport size 6900*2210*3100mm Hydraulic leg 6 PCS
