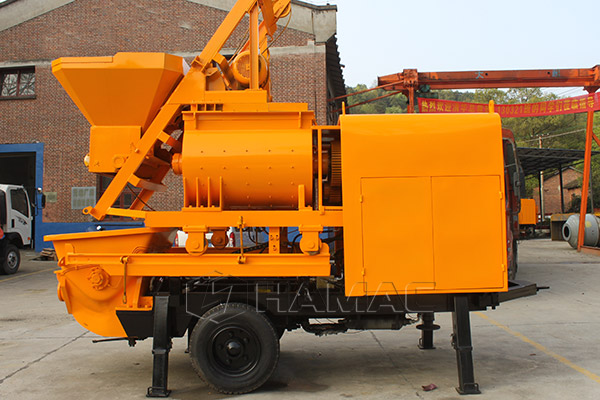

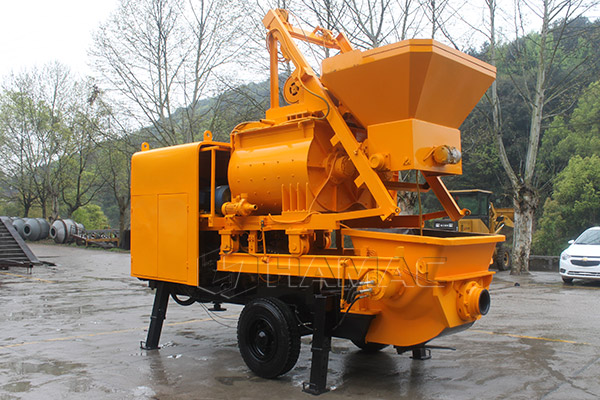

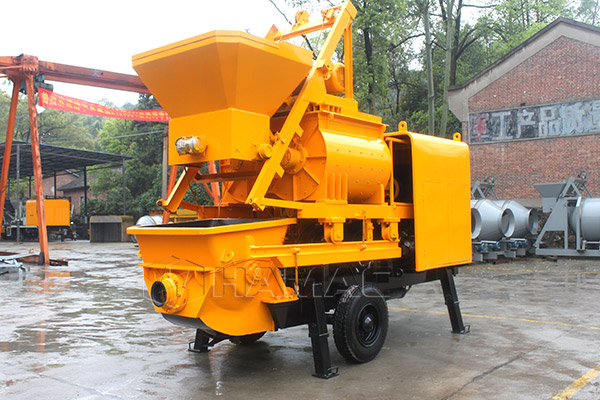

Concrete Mixer With Pump

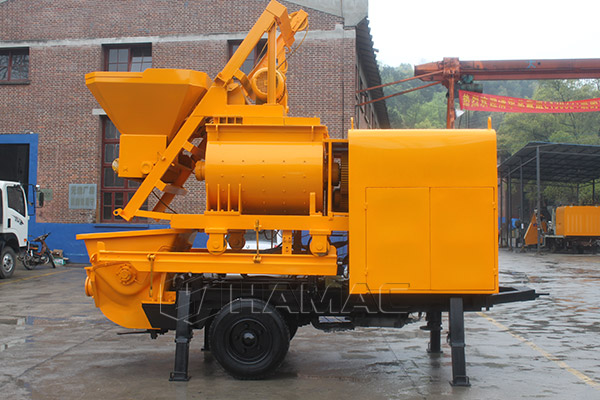

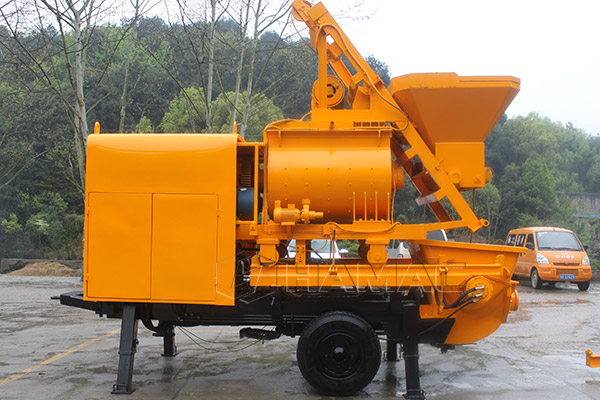

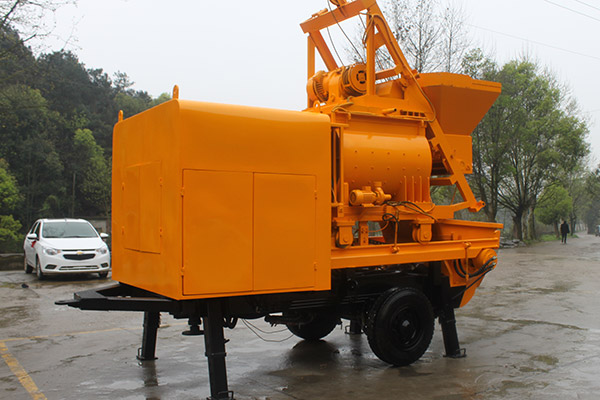

HBT25-L2 Concrete Mixer Pump
  • Type :
    Concrete Mixer With Pump
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
1. Equipped with diesel generator, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Equipped with aggregate batching machine, 20 recipes of concrete can be produced;
4. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
5.PLC controlled, work stable, working life longer.

Tags: concrete mixer with pump Gondar concrete mixing and pumping machine Ethiopia concrete mixer machine with pump Ethiopia boom concrete pump in Librevilletrailer mounted pumps for sale in Moronilarge aggregate concrete pump in Banjulconcrete mixer pump in Mamoudzou

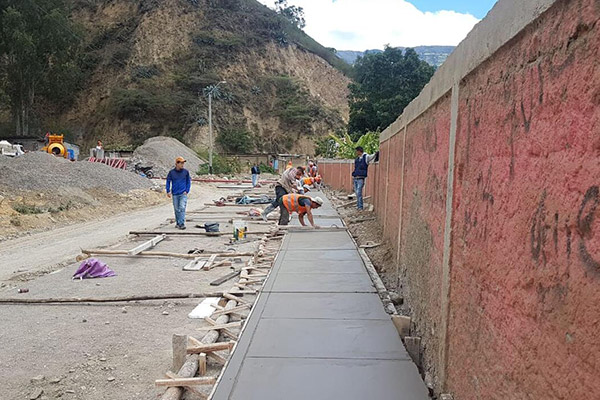

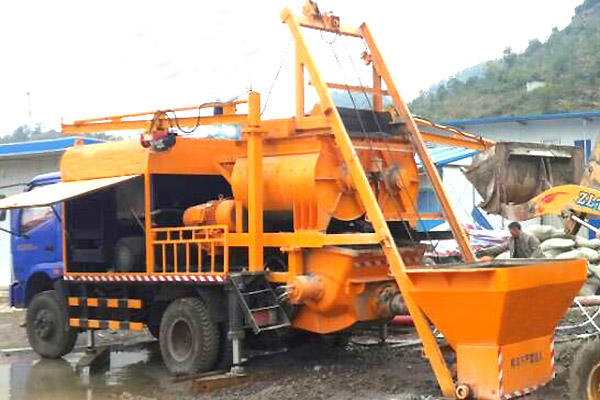

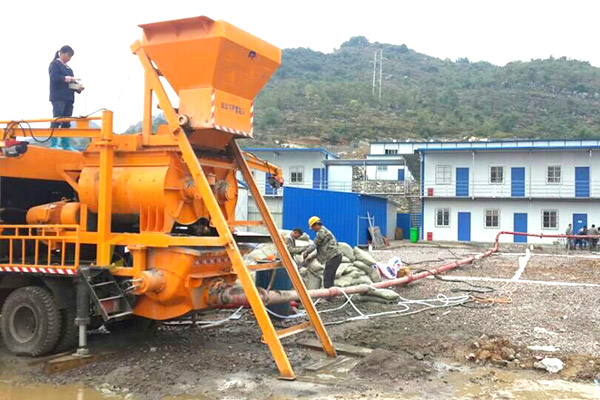

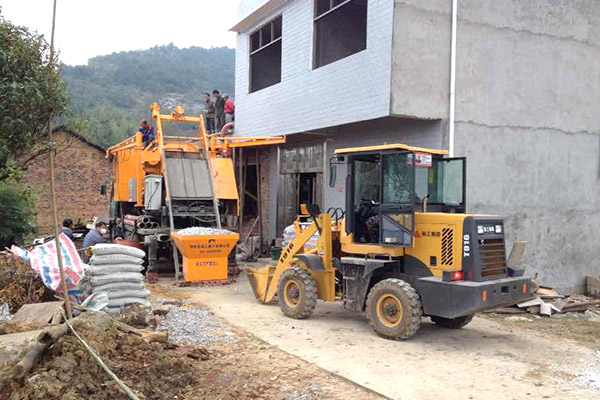

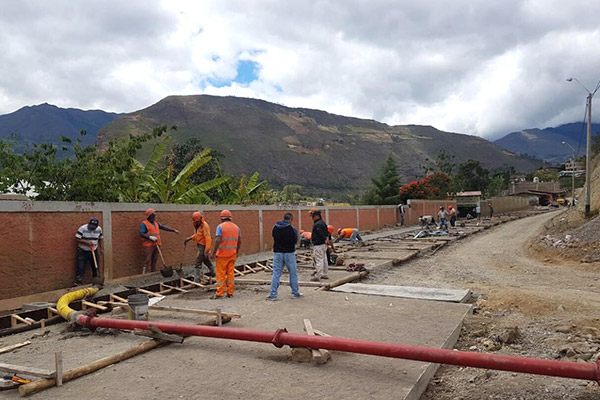

Gallery
Parameters
Model HBT25-L2 Concrete Mixer Pump
Product name Trailer batch pump
Pumping system
ITEM SPEC ITEM SPEC
Generator 100KW Main motor 37KW
Main pump KAWASAKI K3V112 Aggregate size Pebble: 40mm
Crushed stone: 30mm
Deliver cylinder
Diameter*stroke		 Φ200*1000 Main oil cylinder
Rod*stroke		 Φ100*φ70*1000mm
Distribution valve S valve Outlet diameter Φ200
Hydraulic oil tank 300L Delivery pipe Φ125
Slumps 12-23cm Max.theo. Pumping output 40m3/h
Mixing system
Mixer JS500 Mix motor 18.5KW
Feeing hopper x filling height 800L x 1200mm Hoist motor 5.5KW
Discharging
capacity		 500L Water pump 0.75KW
Max. Theoretical mixing output 25m3/h Vibrator WAM 0.75kW*2
Batching system
Hopper capacity 1.8m3*2 Compressor 3 bar
Wireless control Included Sliding rail Included
Overall Dimension
Operating size 8900*2210*3100mm Total weight 8000KG
Transport size 6900*2210*3100mm Hydraulic leg 6 PCS
