Concrete Batching Plant
Belt Conveyor type Concrete Batching Plant
  • Type :
    Concrete Batching Plant
  • Brand :
    HAMAC
  • Origin :
    China
Request a Quote E-mail Us
Features
1. With belt conveyor to feed the mixer, work stably and continuously;

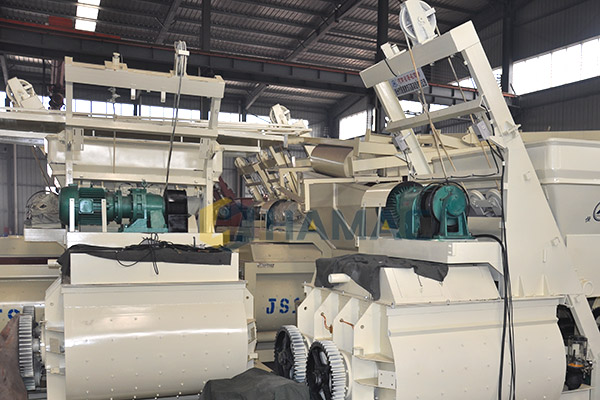

2. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

Tags: concrete mixing plant Addis Ababa HZS series concrete batching plant Addis Ababa zoomlion concrete pump truck in Algiersboom concrete pump in Dakarconcrete pump parts suppliers in Bujumburadaewoo concrete pump in Khartoum

Gallery
Parameters
Technical data Model
HZS60 HZN60 HZS90 HZN90 HZS120 HZS180(150) HZS240(200)
Theoretical capacity(m³/h) 60 60 90 90 120 180(150) 240(200)
Mixer model JS1000 MP1000 JS1500 MP1500 JS2000 JS3000 JS4000
Batching system PLD1600 PLD1800 PLD2400 PLD2400 PLD3200 PLD4800 PLD6400
Discharging height (mm) 4100 4840 4100 4100 4100 4100 4100
Maximum aggregates size(mm) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80)
automatic Cycle time(s) 60 60 60 60 60 60(72) 60(72)
Weighing Precision of Aggregate ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Weighing Precision of Cement ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Water ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Additive ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Total power(KW) 106 114 145 145 175 215 295

Note: Note: Our products are being updated constantly, all rights reserved by HAMAC.
